GENERAL DESCRIPTION
MODEL MP808 – Total Output Power 70W

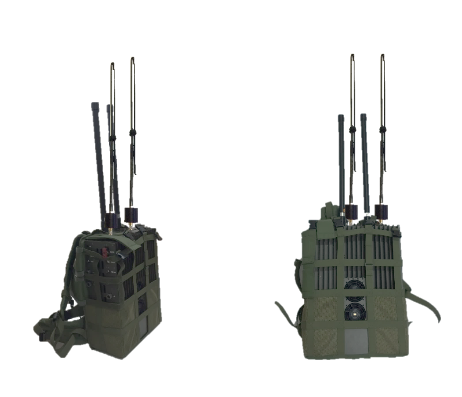

The Manpack model MP808 tactical jammer has been designed to neutralize RF and cellular communication during special units’ activity in the field. The MP808 uses state-of-the-art technology for maximum performance. The unit is controlled by a FPGA for DDS & TxDac programming.
The MP808 transmits a noise signal which cuts off RF communications at HF, V/UHF, Cellular & Wi-Fi bands. The unit protects against RCIEDs detonated remotely by HF, V/UHF, Cellular or Wi-Fi networks. The protection muting ratio is up to 6:1 (depends on environment conditions).
The MP808 IED jammer is supplied with high quality Lithium-Ion/Polymer battery and provides up to 4 hours of continuous operation. The MP808 is supplied with a temperature sensor that controls the silent fans, for an automatic and necessary use only. Our MP808’s design approach is supporting MIL-STD810F. Additionally, the MP808 is supplied with a special backpack case & Remote Control.
OPERATIONAL SCENARIO
- Jamming distance: 40M
- VSWR protector
- High gain Omni-Directional antennas
- GUI for programming desired bands and Open Communication Window
- Thermal protection
- Low battery indicator
- Remote Control Operation
- Unit complies with IP65 standard
- Set of Antennas – Omni direction and directional high gain
- Programmable frequency bands
TECHNICAL SPECIFICATIONS
RF Characteristics
| Total Output Power | Up to 30W per band |
| Internal Modulation | FM Hopping Frequency + White Noise |
| Signal Source | PDDS & TxDac |
| Power Supply | 25.9VDC/40Ah Li-Ion/Polymer Rechargeable Battery |
| Modules Per Unit | Up to 8 |
| Remote Control | Wired |
Jamming Frequency Range
| Frequency Frequency Band | According to customer requirements |
| Air Interface Standards | Digital: IDEN, TDMA, CDMA, GSM, 2G, 3G, 4G, Wi-Fi |
Physical Data
| Dimensions | 460 x 350 x 150 mm |
| Weight w/o Battery | Approx. 15 Kg |
| Weight with Battery | Approx. 19.5 Kg |
Environment of operation
| Operating Temp | -20ºC to +55ºC |
| Humidity | 5% – 95% – Non Condensing |
| Mil Spec Standard | MIL-STD810F |
*Specifications are subject to change without prior notice
Ver. 1.00.09.16
