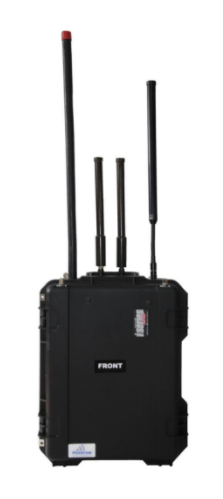

MP809 – Manpack Jammer

MP809 – Manpack Jammer

GENERAL DESCRIPTION

The MP809 is an upgraded Manpack, designed to neutralize and jam IED’s communication during special units’ activity in the field. The MP809 uses state-of-art technology for maximum performance.

The unit is controlled by Microprocessor for DDS programming. The MP809 transmits white noise signal which cuts off RF communications at 915, 1,600, 2,400 & 5,800 MHz Bands.

The unit protects against using of any type of WLAN in 2.4 & 5.8 GHz, ISM Band in 900 MHz and GPS. Protection jamming radius can reach up to 1 Km away with muting ratio of 4:1.

OPERATIONAL SCENARIO

  • System status report via TCP/IP including FWD, VSWR, TEMP
  • ON/OFF per Band via TCP/IP
  • Status LED
  • Wired remote control unit
  • Thermal protection
  • Low battery indicator
  • Programming via TCP/IP per band parameters including Span, Steps & Sweeping Rate
  • MIL-STD Connectors

TECHNICAL SPECIFICATIONS

RF Characteristics

Total Output Power Up to 500W
Internal Modulation FM Hopping frequency
Signal Source DDS
Power Supply 110/220 VAC
Modules Per Unit 11
Remote Control LAN Port / TCP/IP Protocol
Antennas External Omni-Directional/Directional
Including VSWR protection

Jamming Frequency Range

Frequency Bands According to customer requirements
Air Interface Standards Digital: ISM, GPS, WiFi2.4, WiFi5.8

Physical Data

Dimensions Pelican 1610
Weight Approx. 40Kg

Environment of operation

Operating Temp -20ºC – +55ºC
Humidity 5% – 95%

*Specifications are subject to change without prior notice
*Ver 001.08.17
